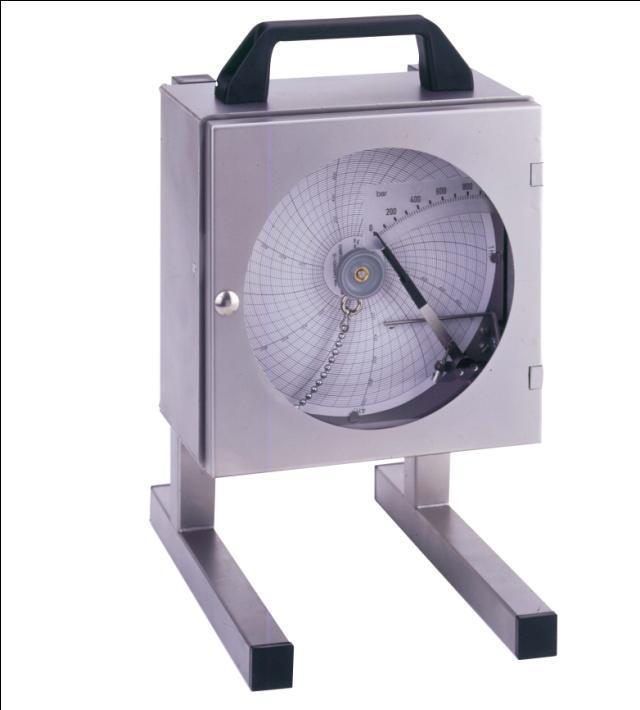

Data mechanical recorders

They are overall stainless steel design.
Registration is performed by means of pens that print continuously with ink onto special diagrams pressure and temperature data, during a certain set period.
- Temperature record range: -200...+800 oC.
- Pressure record ranges: between -1...+0.6 bar and 0...1600 bar.
- Accuracy class: 1 %
These data recorders are generally used with gas transport and delivery companies to register pressure and temperature within pipes.
The device is equipped with an internal clock that can be remote controlled in view of certain limited period of time recording: 1 hour, 7 hours…up to 7 days.
Mounting threaded connections are standard: G ½” or G ¼ ”.
