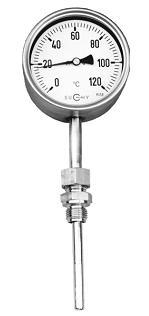

Constant-pressure gas thermometers

Features:

• compliance with the highest demands of measuring technique
• rapid reaction time
• fit for aggressive environment, too.

APPLICATIONS
• Chemical - and petrochemical industry
• Energy saving and preservation, process engineering
• Pipes - and tanks / containers
• Mechanical engineering and apparatus manufacture
• Food processing industry
• Specially customised versions, on demand.

Constant-pressure gas thermometers
- Measuring ranges: - 50...50°C, -30...50°C, -30...120°C, -30...170°C, -20...60°C, -20...80°C, 0...80°C, 0...100°C, 0...120°C, 0...150°C, 0...160°C, 0...200°C, 0...300°C, 0...350°C, 0...400°C, 0...500°C, 0...600°C, 50...300°C, 50...400°C, 100...500°C, 100...600°C; (other ranges on demand).
- Dial case diameters: Ø63, Ø80, Ø100, Ø160, Ø200, Ø250 mm
- Overall stainless steel design
- Immersion stem lengths: 45, 63, 100, 150, 200, 250, 500; (other stem lengths - on demand).
- Immersion stem diameters: Ø6, Ø8, Ø9, Ø12 mm
- Capillary tube length: up to 20 m
- Radial - or axial mounting
- Accuracy class: 1%
- Ingress protection (IP Code): IP55 or IP65.

Optionally:
- anti-vibration design: glycerine or silicone oil filling
- 1, 2, 3 or 4 electric contacts.
