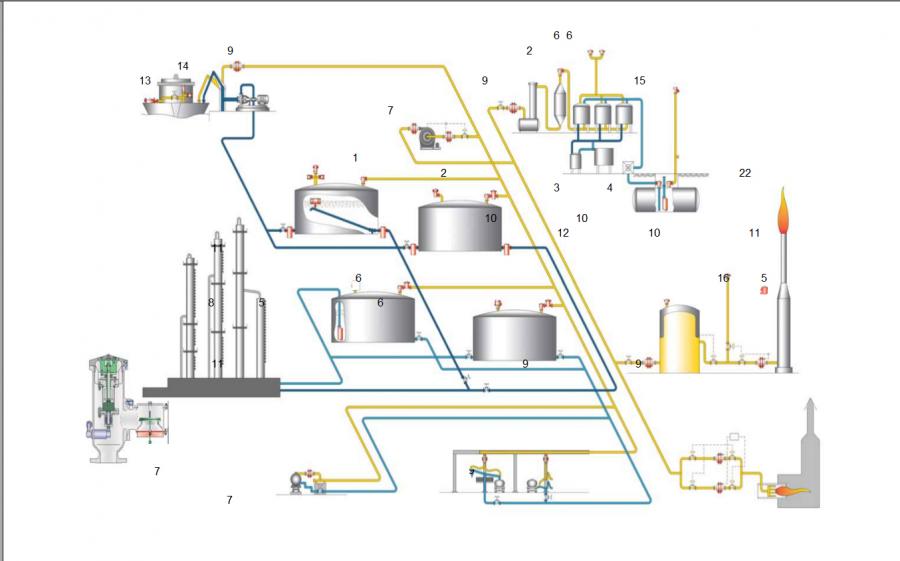

Applications examples

1 PROTEGO® - Combination between fire-resistant pressure and vacuum venting valve, fire-resistant pressure venting valve and end of line vacuum venting valve.

2 PROTEGO® - In-line right-angle antiknock flame arrester for mounting onto pipes in view of protecting installations with potentially explosive working fluids.

3 PROTEGO® - End of line fire-resistant pressure and vacuum venting valve for safe venting of storage tanks.

4 PROTEGO® - Fire-resistant flame arrester and in-line pressure and vacuum venting valve system for venting of blanketing systems or sealed tanks, and for dangerous gas extraction, as well.

5 PROTEGO® - In-line flame arrester, in-line pressure venting valve and direction control valve system for venting of sealed tanks.

6 PROTEGO® - End of line enduring fire-resistant flame arrester for protection of tanks and other installations with potentially explosive working fluids.

7 PROTEGO® - In-line flame arrester with concentric casing design that prevents explosion propagation in pipes, being fit to install near incinerators or other potentially fire-triggering sources. It can be optionally delivered with an integrated pressure loss measuring and temperature sensor system.

Alternatively: 7 PROTEGO® - In-line flame arrester with excentrical casing design that makes maintenance easy, since it hampers casing condensate accumulation. It can be installed where only explosions may occur, due to respective conditions.

8 PROTEGO® - End of line fire-resistant explosion-proof safety valve with pressure – and vacuum diaphragm for venting of tanks or other installations with potentially explosive working fluids.

9 PROTEGO® - In-line bidirectional flame arrester with minimal pressure loss destined for systems that are to be protected on both sides from possible detonations or explosions.

10 PROTEGO® - In-line liquids flame arrester for filling or emptying lines (outdoor installation) with tanks / containers whose piping is not permanently filled with potentially explosive working fluids.

11 PROTEGO® - In-line liquids flame arrester for filling or emptying lines (indoor installation) with tanks / containers whose piping is not permanently filled with potentially explosive working fluids.

12 PROTEGO® - Pivoting system with float device for produce extraction from tanks / containers.

13 PROTEGO® - Flame arrester, extremely ease to maintain, destined for protection of tanks or tanker ships.

14 PROTEGO® - Pressure and vacuum venting valve, made of a rapid pressure venting valve and an end of line vacuum venting valve, for venting of tanks or tanker ships.

15 PROTEGO® - Pressure and vacuum venting valve for tanks / containers aeration.
